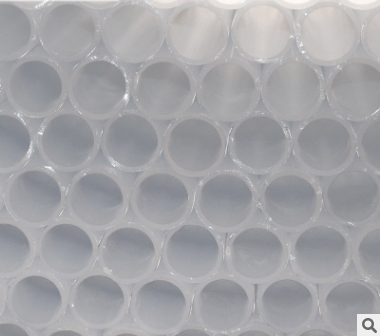

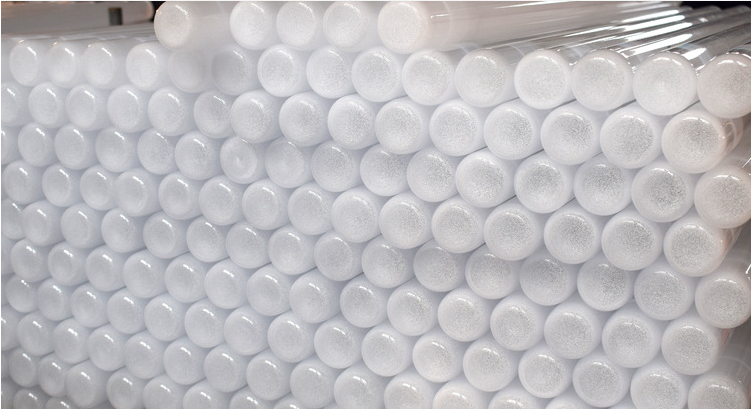

Flat End Milky Quartz Tube
Product name : Flat End Milky Quartz Tube
Model No. : LLMT
Products Category: > Quartz Tube > Milky Quartz Tube
Milky Quartz Tube
Application
widely used in heater, microwave oven, electrical baking oven, sterilization container and so on
Physical Properties:
opalescence | SiO2 | Thermo-stability |
Spectral transmission at less than 500nm | SiO2 more than 99.95% | Keep under 900℃ for 15 minutes, then put into 20℃ water 3 times, no crack |
Dimensional Tolerance
Range of OD | OD | WT | siding | Out of round | Bow/1220mm |
8.00-15.00 | ±2.0% | ±10% | 15% | ２.０% | 2.5mm |
15.00-20.00 | ±２.０% | ±10% | 15% | ２.０% | 2.5mm |
20.00-25.00 | ±２.０% | ±10% | 15% | ２.０% | 2.5mm |
Quality Controlled
1.tolerance control(min±0.1)
2.Accurate dimension according to customer’s request
3.Complete after-service system
Further-Processing
Ends closed, sandblasting, polished, bended, cut, pinched, burned mouth and so on. The special one, please kindly send me the drawing.
